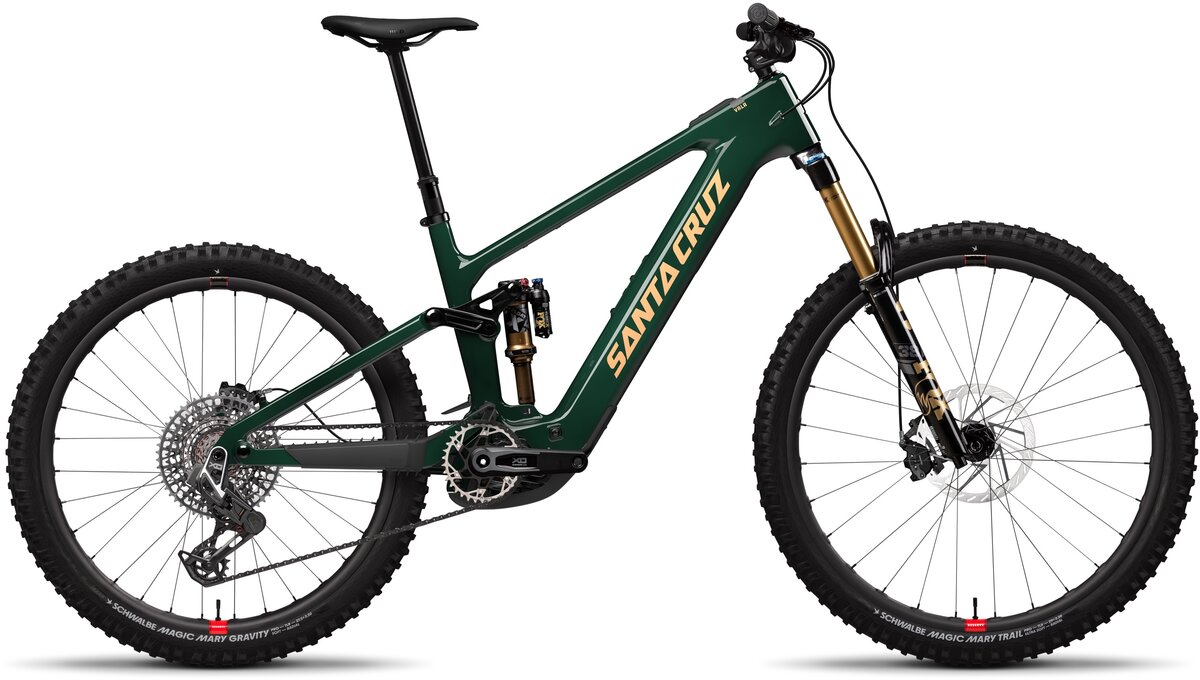

Santa Cruz Vala CC MX X0 AXS RSV

Santa Cruz Vala CC MX X0 AXS RSV
  • Color: Midnight Green
$11,499.00
Color: Midnight Green
Size: Large
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable

Details

The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension, and the finest quality construction, as always.

X0 AXS RSV—High-tech, high performance. CC carbon frame, buttery Fox Factory suspension and powerful SRAM Maven brakes, plus legendary Reserve carbon wheels.

- CLASS-LEADING POWER: The Bosch Performance Line CX is powerful, reliable and quiet. The power on tap and how it delivers it makes going up trails feel like descending.

- RANGE WITH HANDLING IN MIND: 600 Wh is optimal for most rides. Low battery mass improves handling characteristics. The 250 Wh PowerMore extender battery provides the freedom to cover more ground when needed.

- EXCEPTIONAL HANDLING DYNAMICS: Bombproof, lightweight carbon frame, superior ebike suspension performance and tailored geometry create a chassis that exceeds where real mountain biking demands it.

SizeSMMDLGXLXXL
Flip Chip (hi/lo) HI HI HI HI HI
Reach (mm) 435 460 480 500 525
Stack (mm) 623 632 641 655 668
HT Angle (degrees) 64.2 64.2 64.2 64.2 64.2
Rear Center (mm) 439 440 443 446 450
Front Center (mm) 771 801 825 852 883
BB Height (mm) 344 344 344 344 344
F/R BB Drop (mm) 29/11 29/11 29/11 29/11 29/11
Wheelbase (mm) 1210 1241 1268 1298 1333
EF, TT Length (mm) 573 601 622 645 674
ST Length (mm) 380 400 420 460 500
EF, ST Angle (degrees) 77.5 77.5 77.5 77.5 77.5
ST ANG / Saddle HT 77.1 / 680mm 77.1 / 730mm 77.1 / 780mm 77.1 / 830mm 77.1 / 870mm
Standover (mm) 741 735 735 734 728
Flip Chip (hi/lo) LO LO LO LO LO
Reach (mm) 432 456 477 497 522
Stack (mm) 623 636 644 657 671
HT Angle (degrees) 63.9 63.9 63.9 63.9 63.9
Rear Center (mm) 440 441 444 447 451
Front Center (mm) 771 801 825 852 883
BB Height (mm) 340 340 340 340 340
F/R BB Drop (mm) 32/17 32/18 32/19 32/20 32/21
Wheelbase (mm) 1211 1242 1269 1298 1334
EF, TT Length (mm) 574 602 623 646 675
ST Length (mm) 380 400 420 460 500
EF, ST Angle (degrees) 77.2 77.2 77.2 77.2 77.2
ST ANG / Saddle HT 76.8 / 780mm 76.8 / 780mm 76.8 / 780mm 76.8 / 780mm 76.8 / 780mm
Standover (mm) 736 730 730 730 723

Specs

Frame Carbon CC MX 150mm Travel, 4-Bar
Fork FOX 38 Factory, Grip X2, 160mm
Rear Shock FOX Float X Factory, 205x60
Rims Front: Reserve 30|HD Carbon Rear: Reserve 31|DH Carbon
Hubs Front: DT Swiss 350, 15x110, 6-Bolt, 28h Rear: DT Swiss 350, 12x148, XD, 6-Bolt, 24t, 32h
Tires Front: Schwalbe Magic Mary, 27.5x2.5, Gravity Radial Soft Rear: Schwalbe Magic Mary, 29x2.5, Trail Radial Ultra Soft
Crankset SRAM X0 Eagle Cranks, 160mm
Shifters SRAM AXS Pod Controller Rocker Paddle
Rear Derailleur SRAM X0 Eagle AXS T-Type, 12spd
Cassette/Freewheel SRAM X0 Eagle T-Type, 10-52t
Chain SRAM X0 Eagle T-Type, Flattop, 12spd
Brakes SRAM Maven Silver Stealth
Rotors Front: SRAM HS2 200mm Rear: SRAM HS2 200mm
Handlebars Santa Cruz 35 Carbon Bar, 800mm
Tape/Grips Santa Cruz Bicycles House Grips
Stem OneUp Stem, 42mm -or- Burgtec Enduro Stem, 42mm
Headset Cane Creek 50 IS Integrated Headset
Seatpost OneUp Dropper Post, 31.6
Saddle WTB Silverado Medium Fusion, CroMo SL
Motor Bosch Performance CX BDU38
Battery Bosch PowerTube Battery 600Wh

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Midnight Green / Large / 29-inch front / 27.5-inch rear 192219453323 58-25304-351-4-859-575502-01 210000031112
